Since 2000
Infrared Optics for Thermal image
Custom chalcogenide glass infrared optical lens covering LWIR, MWIR, and SWIR bands.
Lens Options for Uncooled and Cooled Infrared Detectors
Multiple Focal Length Options with Athermal Design Support
26years Optic Experiences | Athermalized Design | 8/12/17 μm Detector Options | OTS + Custom

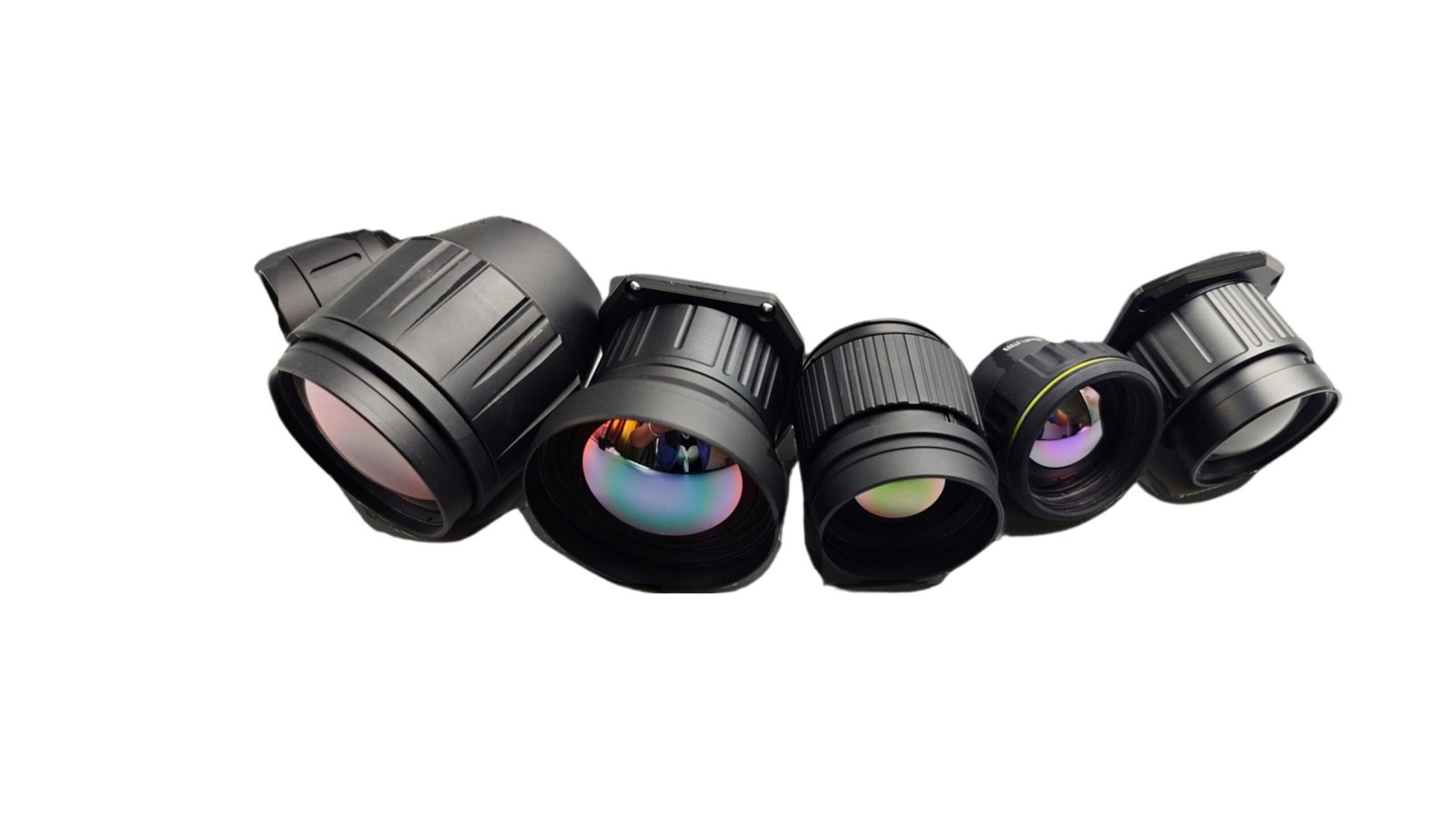

Product range
Infrared Optical Solutions Matched to Your Detector and Imaging Requirements

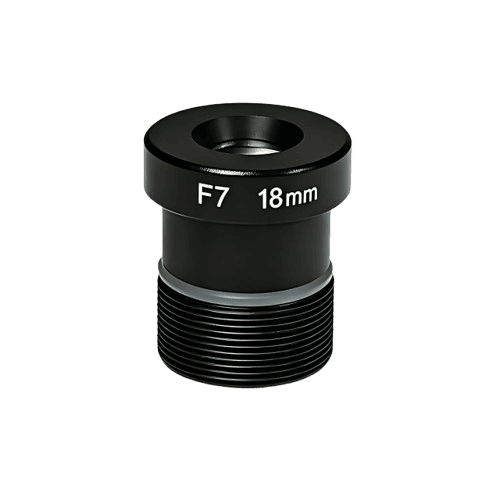

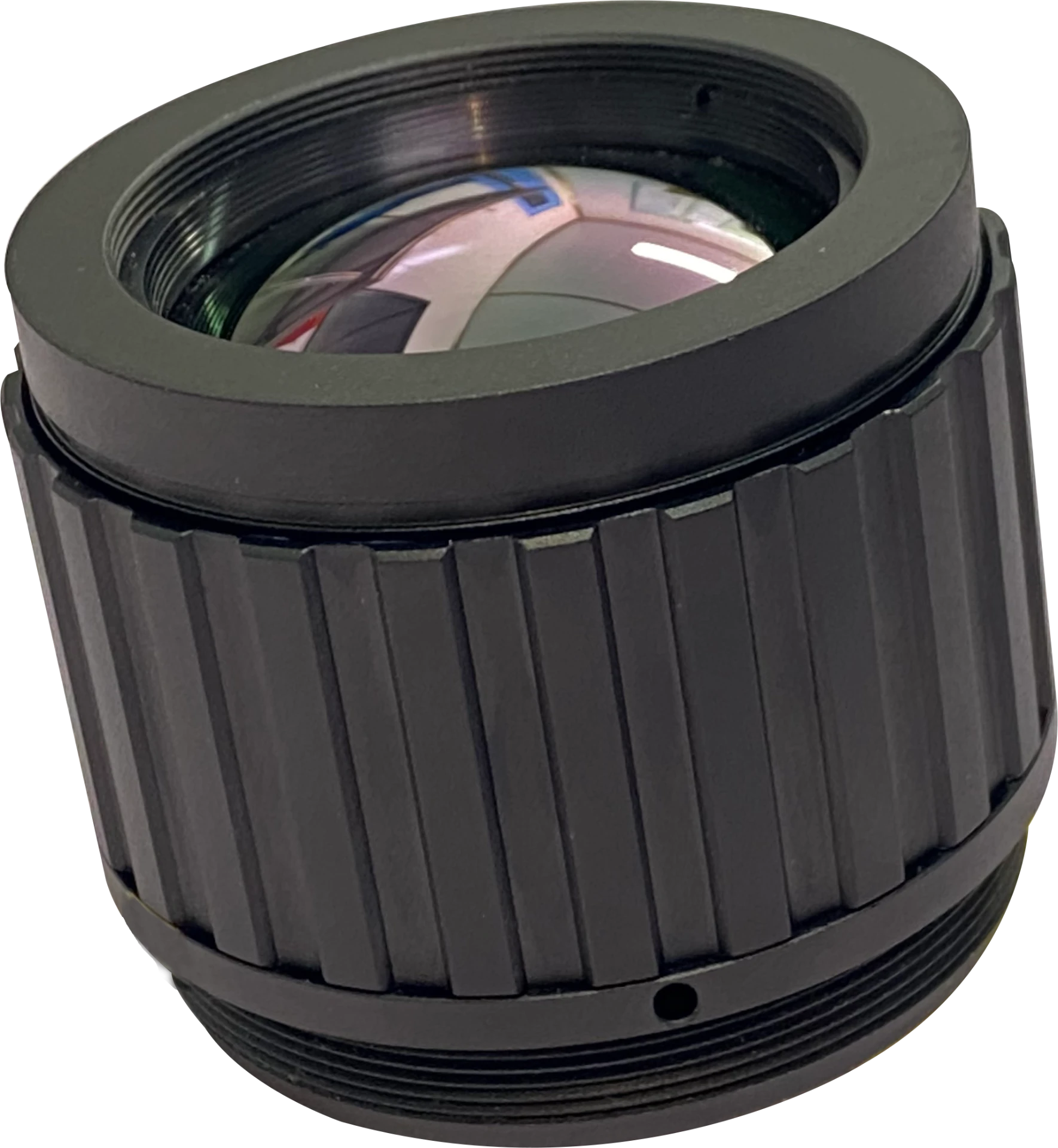

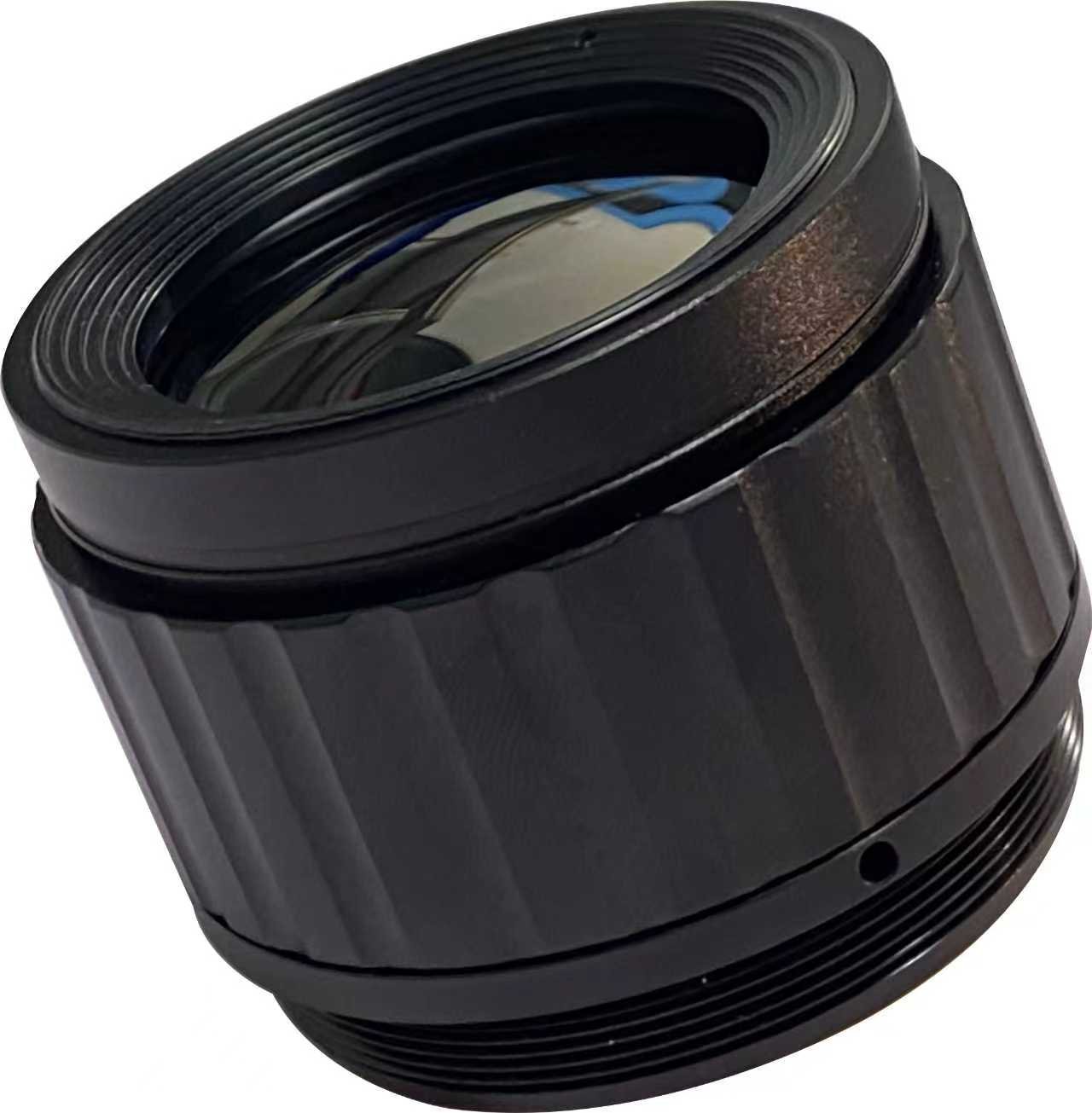

Fixed Focal Length Infrared Lenses
Fixed focal length optics with manual focus, motorized focus, or fixed-focus options to suit your imaging requirements.
Continuous Zoom Infrared Lenses
Continuous zoom options for wide-area observation and detailed target inspection.
Custom Infrared Optical Solutions
Optical designs tailored to your detector, spectral band, focal length, and integration requirements.
Key Features
- Athermalized Design — Reduced focus shift over the specified temperature range.
- 8–14 μm LWIR — Lens options for 8–14 μm imaging.
- Fixed & Continuous Zoom Options — Focal lengths for different field-of-view requirements.
- Large Aperture — Improved infrared energy collection
- 8 / 12 / 17 μm — Multiple detector platforms
- Wide Applications — Security, UAV, automotive & more
Selection table
Find the Right Infrared Lens for Your Detector
| Lens Type | Focal Length | Spectral Band | Pixel Pitch | Focus | Best Fit |
|---|---|---|---|---|---|
Fixed-focus athermalized |
2–120 mm |
8–14 μm |
8 / 12 / 17 μm |
Passive |
Compact OEM systems |
Motorized focus |
Custom |
8–14 μm |
Multiple options |
Remote |
Integrated thermal cameras |
Continuous zoom |
Custom range |
8–14 μm |
Detector matched |
Motorized |
Long-range observation |
| Sensor | Part NO. | EFL | FNO. | FOV
H
V | Mount | Resolution |
|---|---|---|---|---|---|---|
H
V | ||||||
| 8µm | LMXHG-003 | 6 | 0.85 |
48.5
38.8 | M17*0.5 | 640*512 |
| LMXHG-006 | 9 | 1.0 |
67.3
53.2 | M45*0.75 | 1280*1024 | |
| LMXHG-007 | 14 | 1.0 |
41.2
33.1 | M34*0.5 | ||
| LMXHG-008 | 25 | 1.0 |
23.2
18.6 | M36*0.5 | ||
| LMXHG-009 | 35 | 1.0 |
16.5
13.3 | M40*0.5 | ||
| LMXHG-011 | 50 | 1.0 |
11.5
9.3 | M45*1 | ||
| LMXHG-012 | 75 | 1.0 |
11.6
9.3 | M45*0.75 | ||
| 12µm | LMXHG-017 | 2.2 | 1.05 |
82.8
60.2 | M14*0.5 | 256*192 |
| LMXHG-019 | 4 | 1.0 | 46.734 | M16*0.5 | ||
| LMXHG-020 | 6.8 | 1.0 | 25.619.2 | M14*0.5 | ||
| LMXHG-021 | 7 | 1.0 | 24.618.4 | M18*0.75 | ||
| LMXHG-022 | 10 | 0.88 | 17.613.2 | M18*0.75 | ||
| LMXHG-024 | 13 | 1.0 | 13.610.2 | M18*0.75 | ||
| LMXHG-027 | 5 | 1.0 | 43.632.8 | M16*0.5 | 320*240 | |
| LMXHG-028 | 6.8 | 1.0 | 31.623.7 | M14*0.5 | ||
| LMXHG-029 | 15 | 1.0 | 14.611.0 | M14*0.5 | ||
| LMXHG-030 | 4.1 | 1.15 | 64.648.3 | M17*0.75 | 384*288 | |
| LMXHG-031 | 5.6 | 1.0 | 4534.1 | M14*0.5 | ||
| LMXHG-032 | 5.3 | 1.0 | 5540.8 | M22*0.5 | 400*300 | |
| LMXHG-033 | 7.5 | 1.0 | 3627.2 | M17*0.5 | ||
| LMXHG-036 | 35 | 0.9 | 7.85.9 | M22*0.5 | ||
| LMXHG-037 | 4.1 | 1.0 | 10283 | M19*0.5 | 640*512 | |
| LMXHG-038 | 5.5 | 1.1 | 8666.8 | M34*0.5 | ||
| LMXHG-039 | 7.5 | 1.0 | 63.851 | M17*0.5 | ||
| LMXHG-043 | 13 | 1.0 | 32.626.3 | M18*0.5 | ||
| LMXHG-048 | 19 | 1.0 | 23.318.6 | M20*0.5 | ||
| LMXHG-051 | 25 | 0.9 | 17.514 | M30*0.75 | ||
| LMXHG-055 | 50 | 1.0 | 8.77 | M34*0.5 | ||
| LMXHG-059 | 75 | 1.2 | 5.84.7 | M34*0.75 | ||
| LMXHG-067 | 7.8 | 1.2 | 120.294.1 | M34*0.75 | 1280*1024 | |
| LMXHG-068 | 9 | 1.0 | 105.181.9 | M45*0.75 | ||
| LMXHG-069 | 14 | 1.0 | 60.549 | M34*0.5 | ||
| LMXHG-070 | 25 | 1.0 | 34.327.7 | M36*0.5 | ||
| LMXHG-071 | 35 | 1.0 | 24.419.7 | M40*0.5 | ||
| LMXHG-074 | 50 | 1.0 | 1713.7 | M45*1 | ||
| LMXHG-076 | 75 | 1.0 | 11.69.3 | M45*0.75 | ||
| LMXHG-077 | 100 | 1.15 | 8.87 | M34*0.5 |
Material to production
Standard & Custom Infrared Optics for System Integration
Lensmind focuses on chalcogenide-based infrared optics for Infrared Thermal imaging applications. Our optical solutions are designed for thermal camera platforms where imaging performance, thermal stability, manufacturability and volume cost all matter.
01
Advanced Chalcogenide Materials
Proprietary glass options, including As-free materials compliant with RoHS/REACH.
02
Proven LWIR Optical Design
Infrared lens design for security, automotive, outdoor and OEM thermal imaging.
03

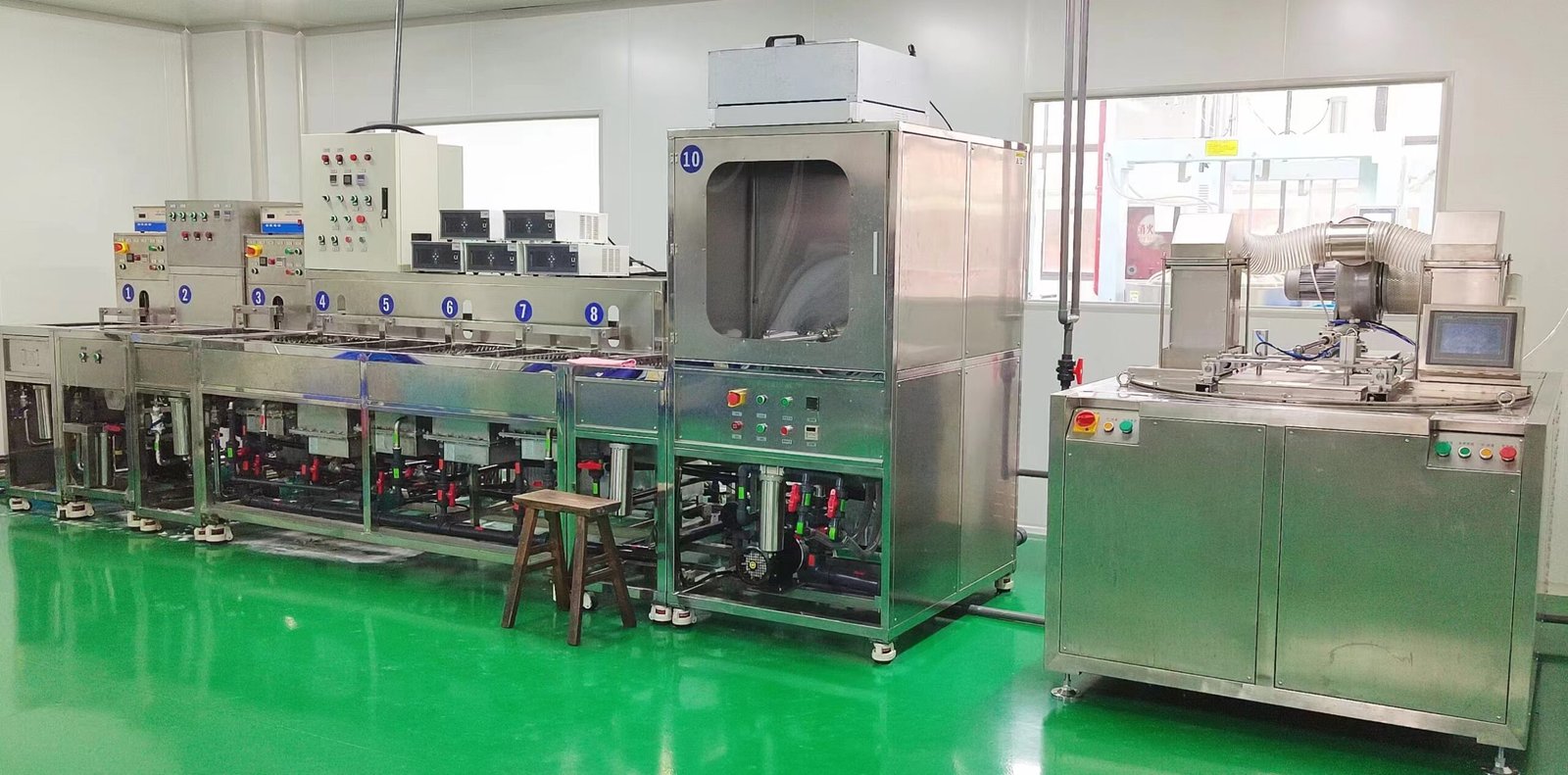

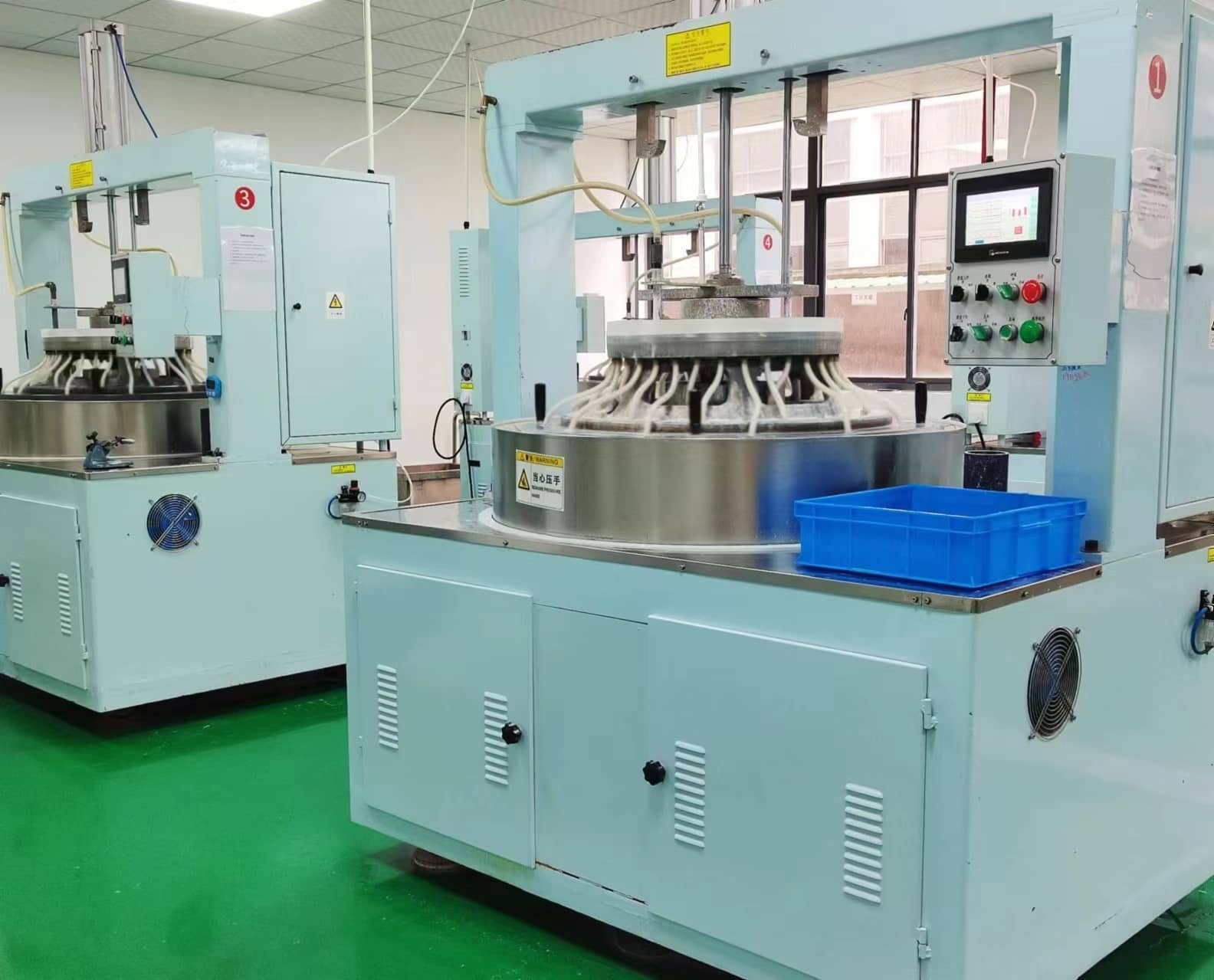

Precision Manufacturing
Ultra-precision aspheric molding, diamond turning and infrared optical coating.
04
Fast Customization & Scalable Supply
From application-specific design and rapid sampling to stable volume production.
About Lensmind
One Optical Partner,
From OTS Catalog to Custom Optics
Extensive OTS Database
Rapid selection and prototyping across a broad lens catalog.
Rapid R&D & Customization
Agile engineering from concept through mass production.
End-to-End Capabilities
Standard optical products and custom design services in one supply chain.
Custom-fit engineering
When a Standard IR Lens Doesn’t Fit Your System
Your optical constraints
Need a different FOV?
Lens doesn’t match your detector?
Focus shifts with temperature?
Mechanical space is limited?
Need a second optical source?
Existing lens is too costly for volume production?
Lensmind response
01 Detector Matching
01 Custom EFL & FOV
01 Athermalized Design
01 Mechanical Adaptation
01 Rapid Prototyping
01 Volume Production Support
Applications
Built for Real-World Thermal Imaging Applications

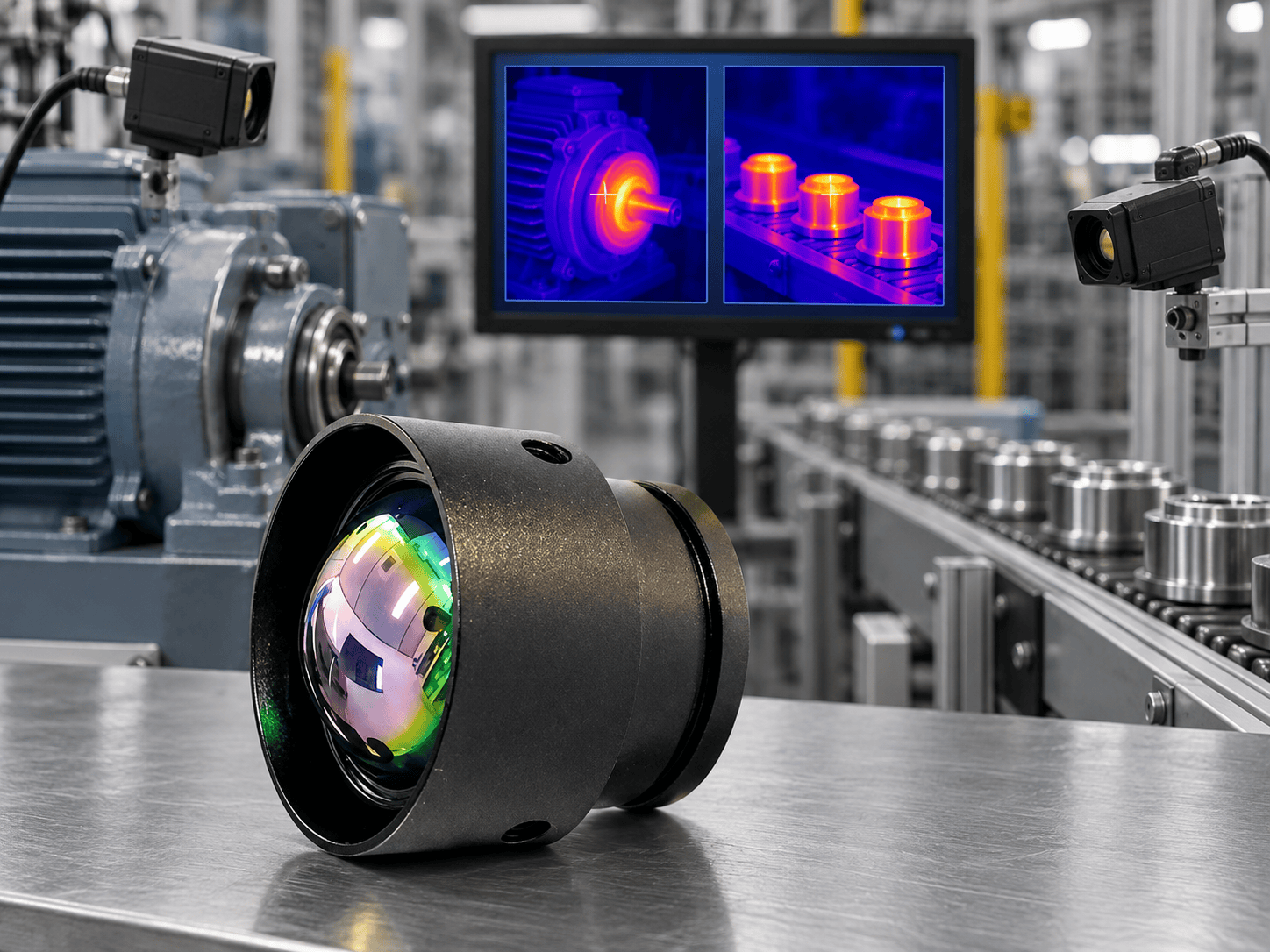

Industrial Thermal Imaging
Temperature monitoring, predictive maintenance and industrial inspection.

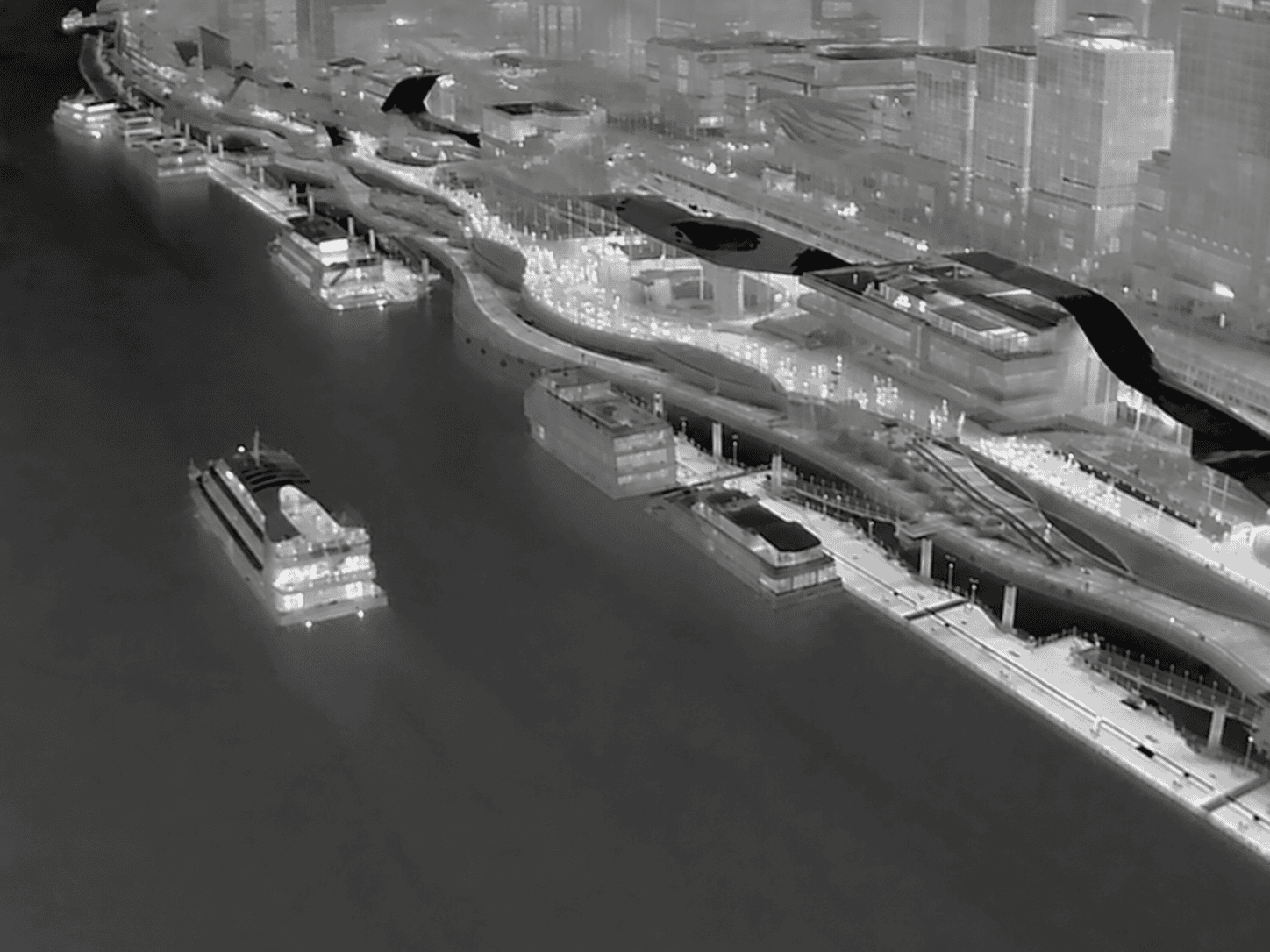

Security & Surveillance
Thermal imaging for day/night monitoring and perimeter applications.
UAV & Robotics
Compact LWIR optics for drones, robots and autonomous systems.

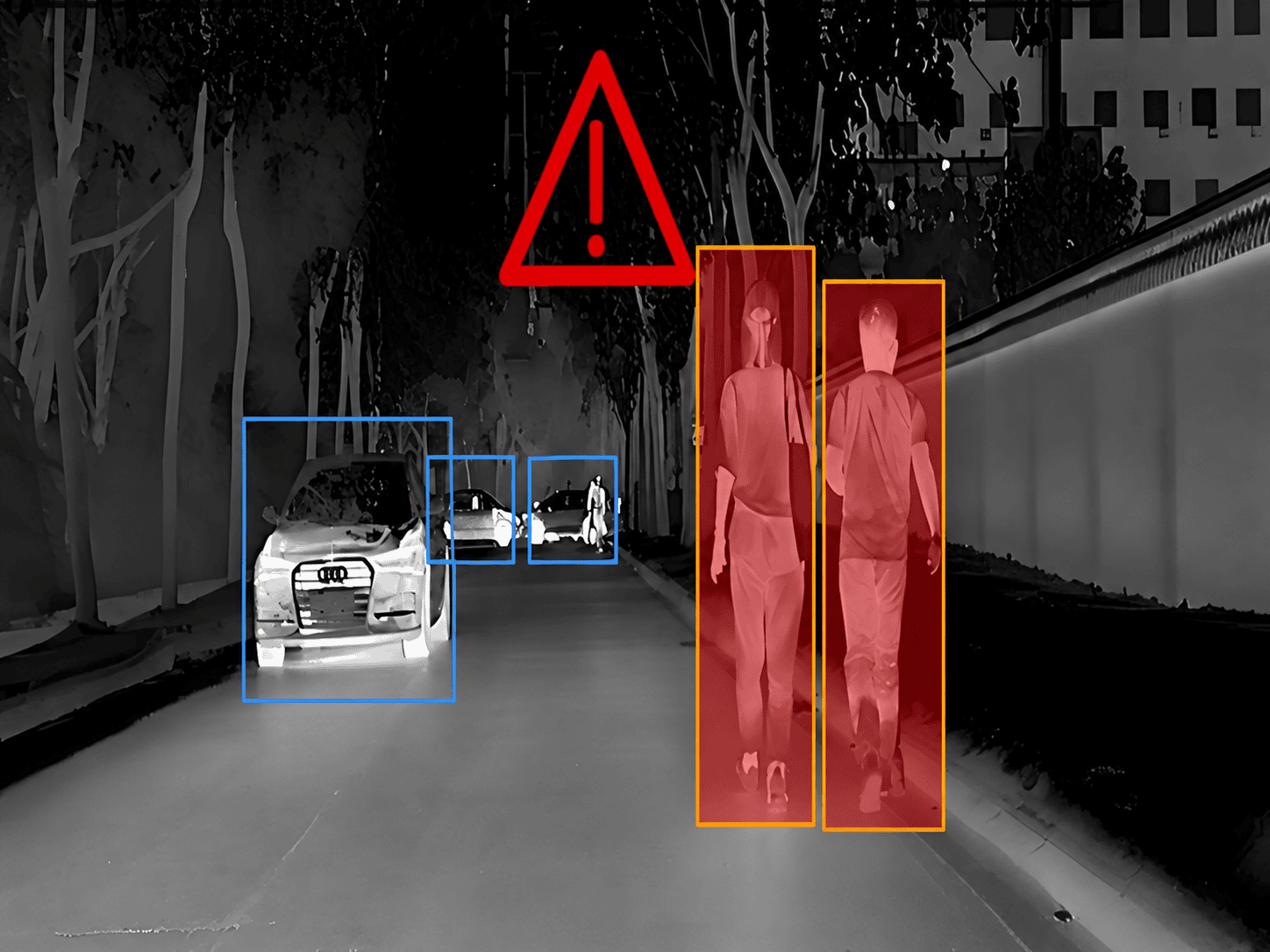

Automotive Thermal Vision
Thermal imaging optics for vehicle perception and night-vision applications.
Outdoor
High-performance optics withstand repeated shocks, ensuring reliable outdoor performance.

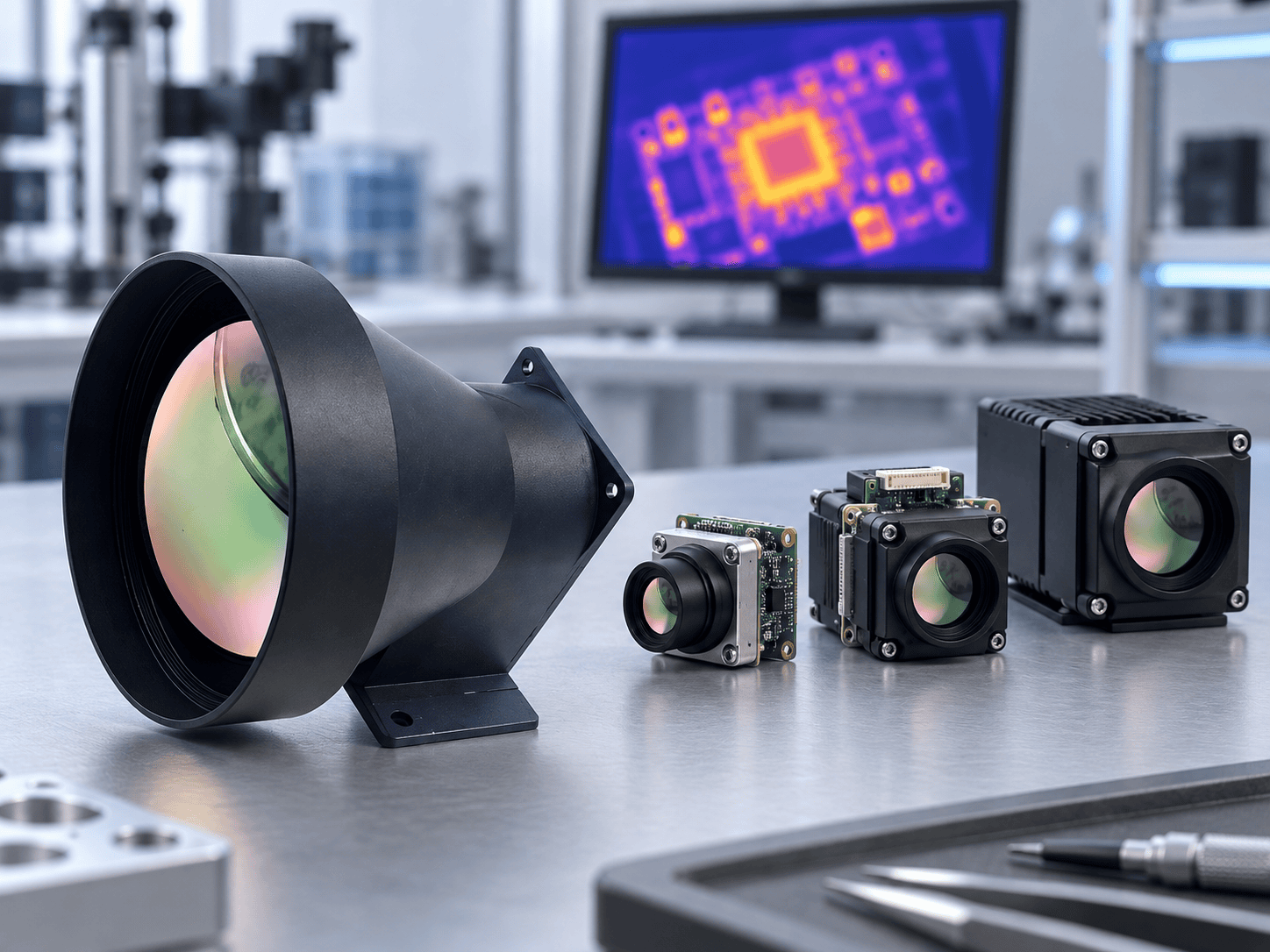

OEM Thermal Cameras
Optical solutions for camera cores, modules and custom imaging systems.
Custom development
Need a Lens Designed Around Your Thermal Camera?
01
Requirement
02
Optical Evaluation
03
Design
04
Prototype
05
Testing
06
Production
Engineering & manufacturing
From Optical Design to Reliable Production
Optical Design
Detector-matched development and performance optimization.

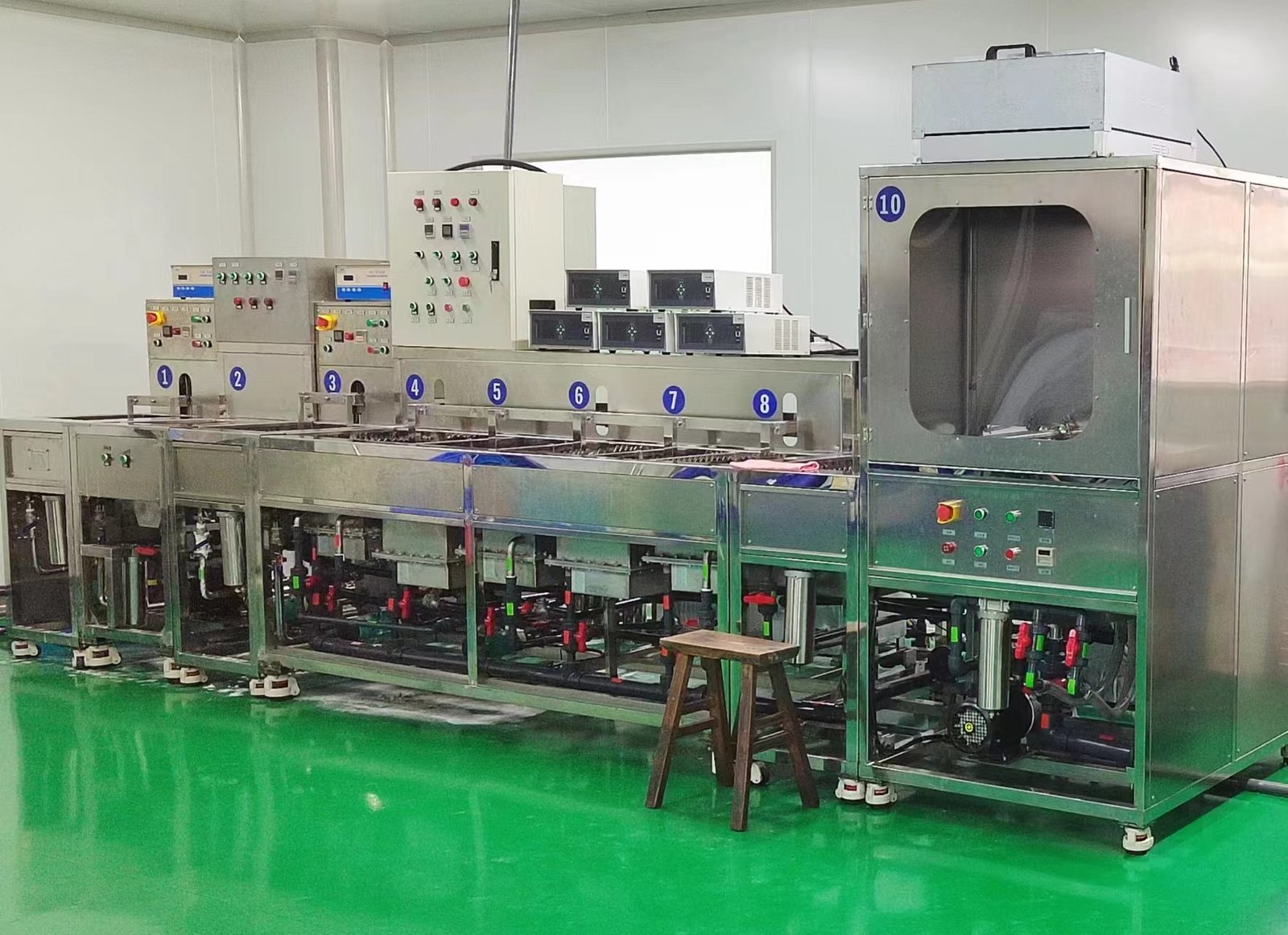

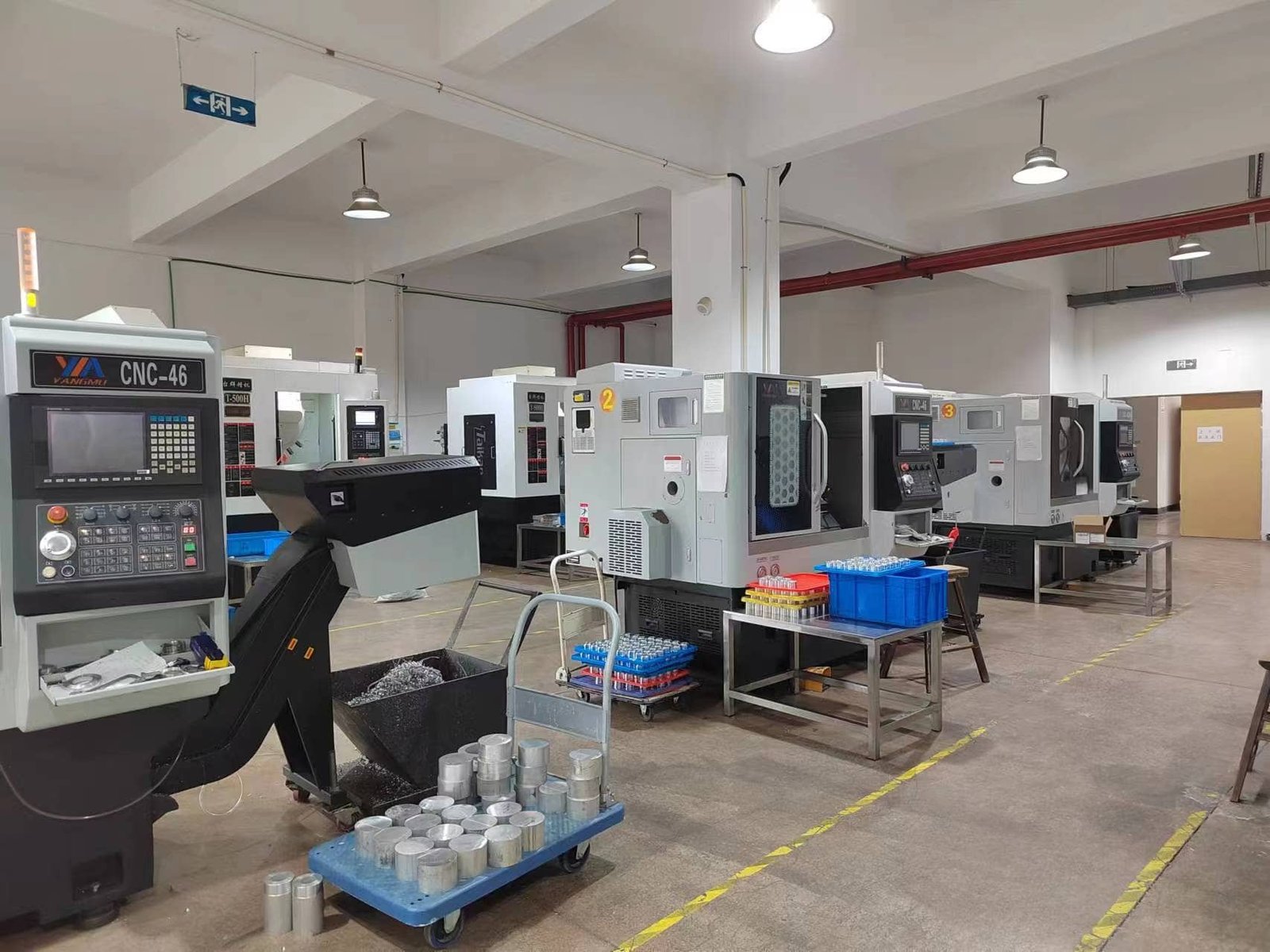

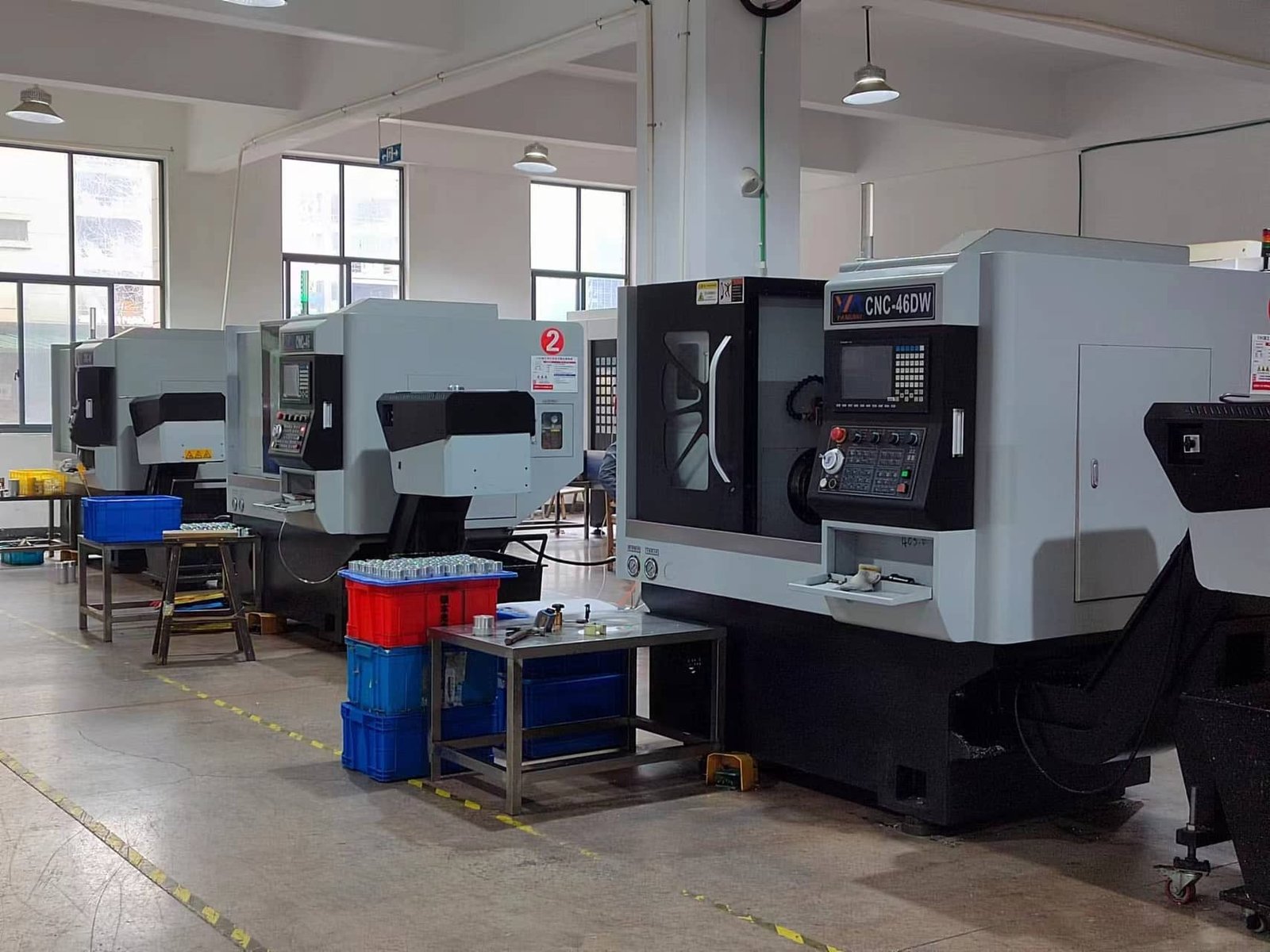

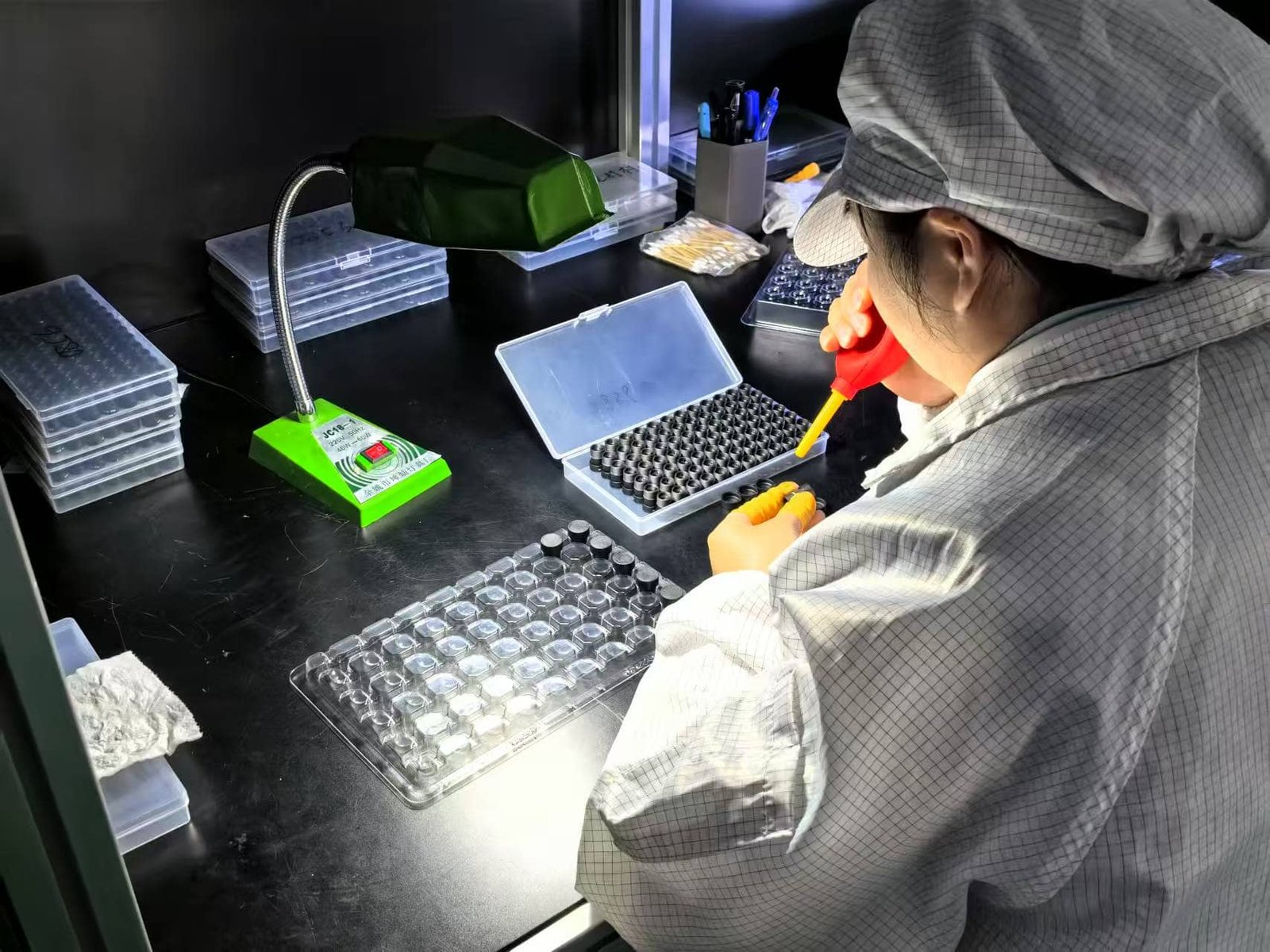

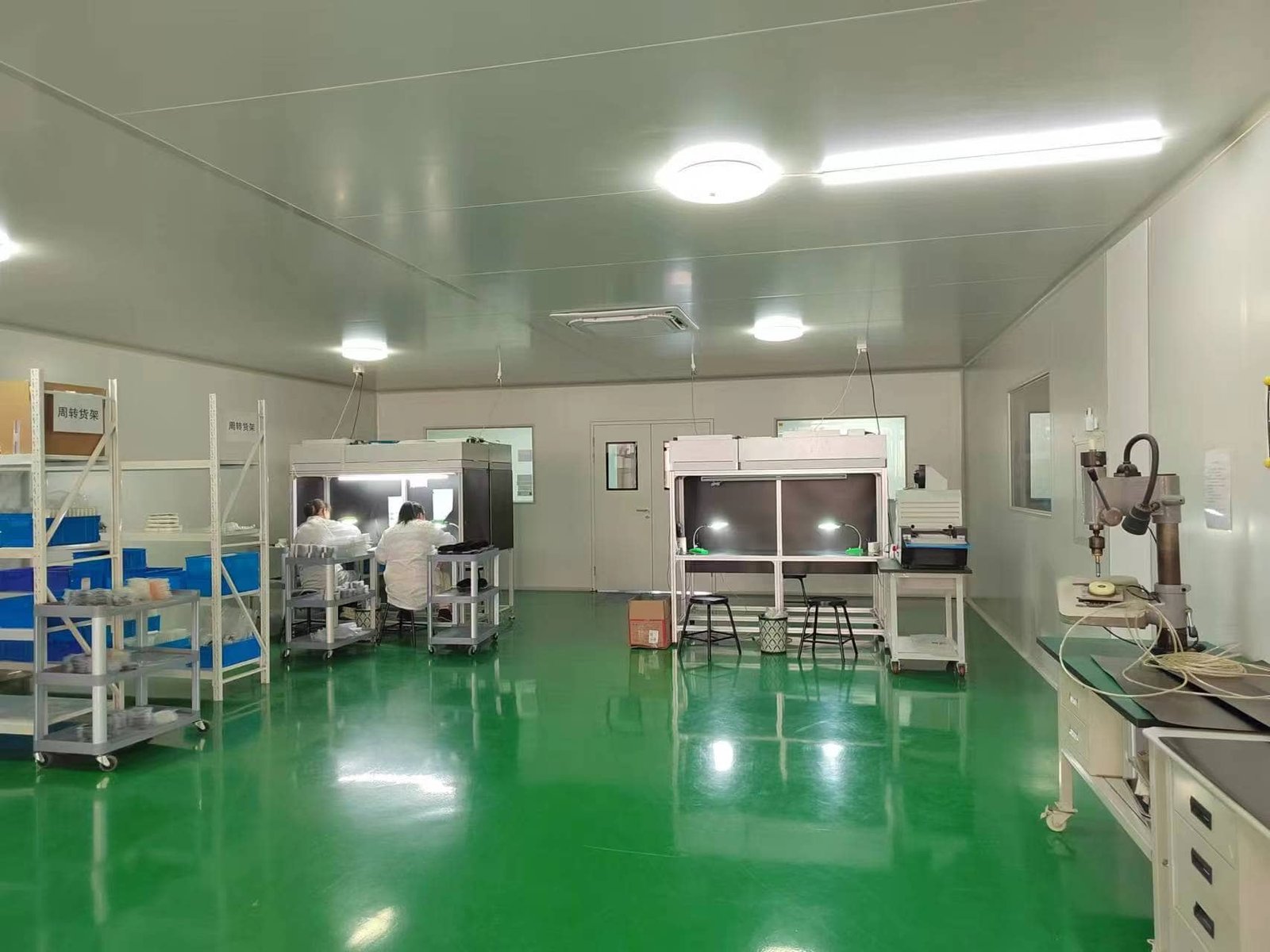

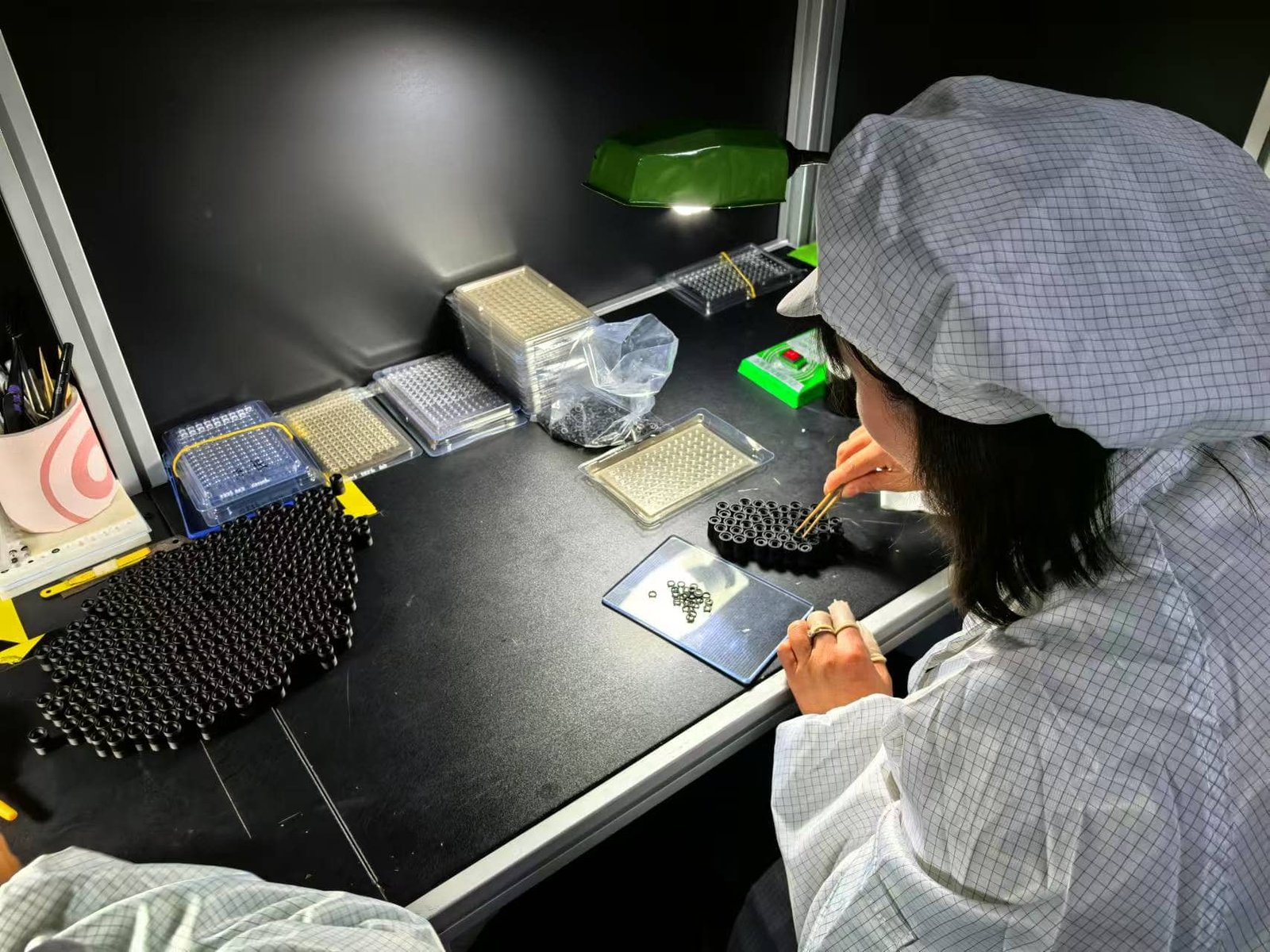

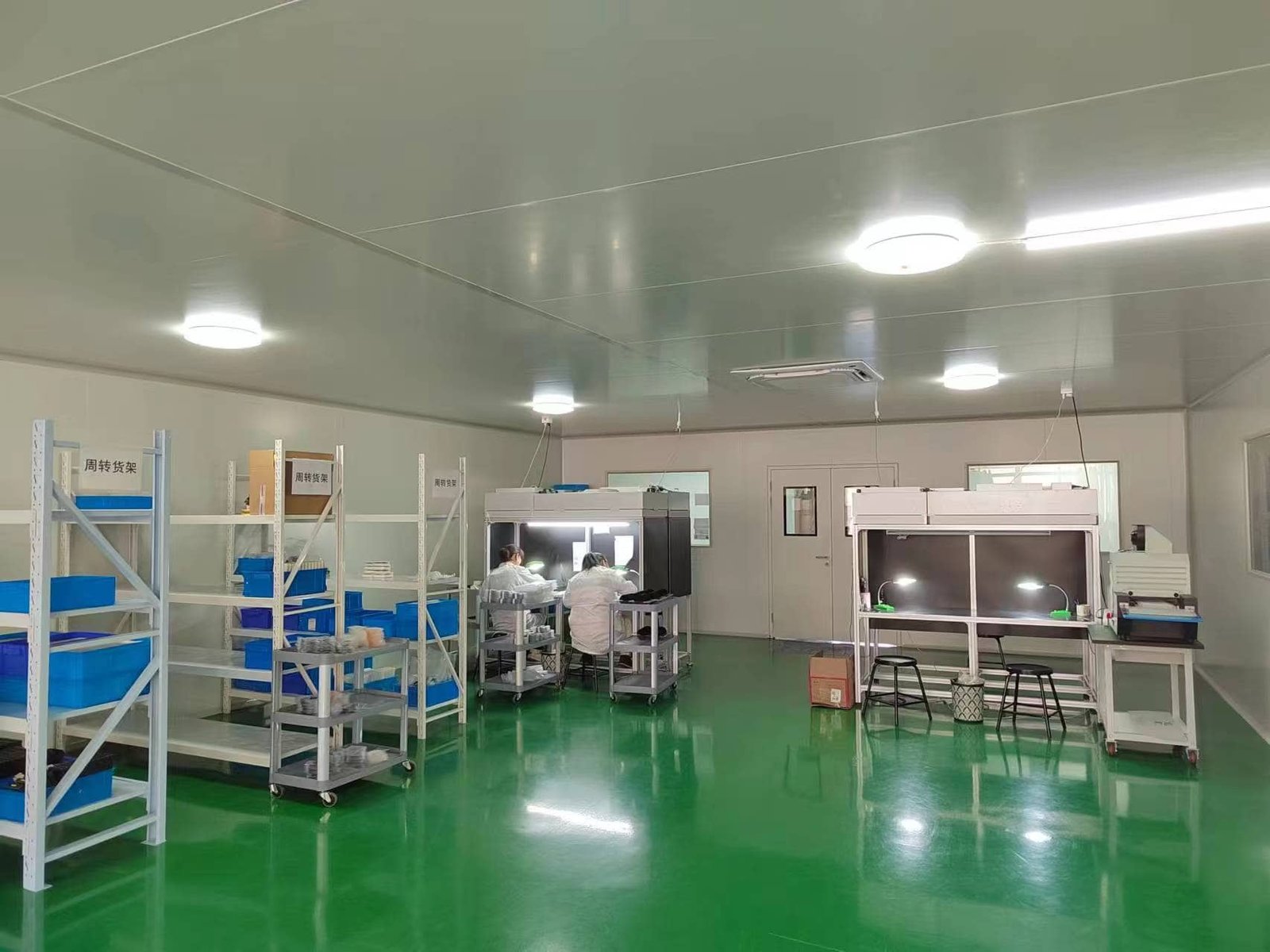

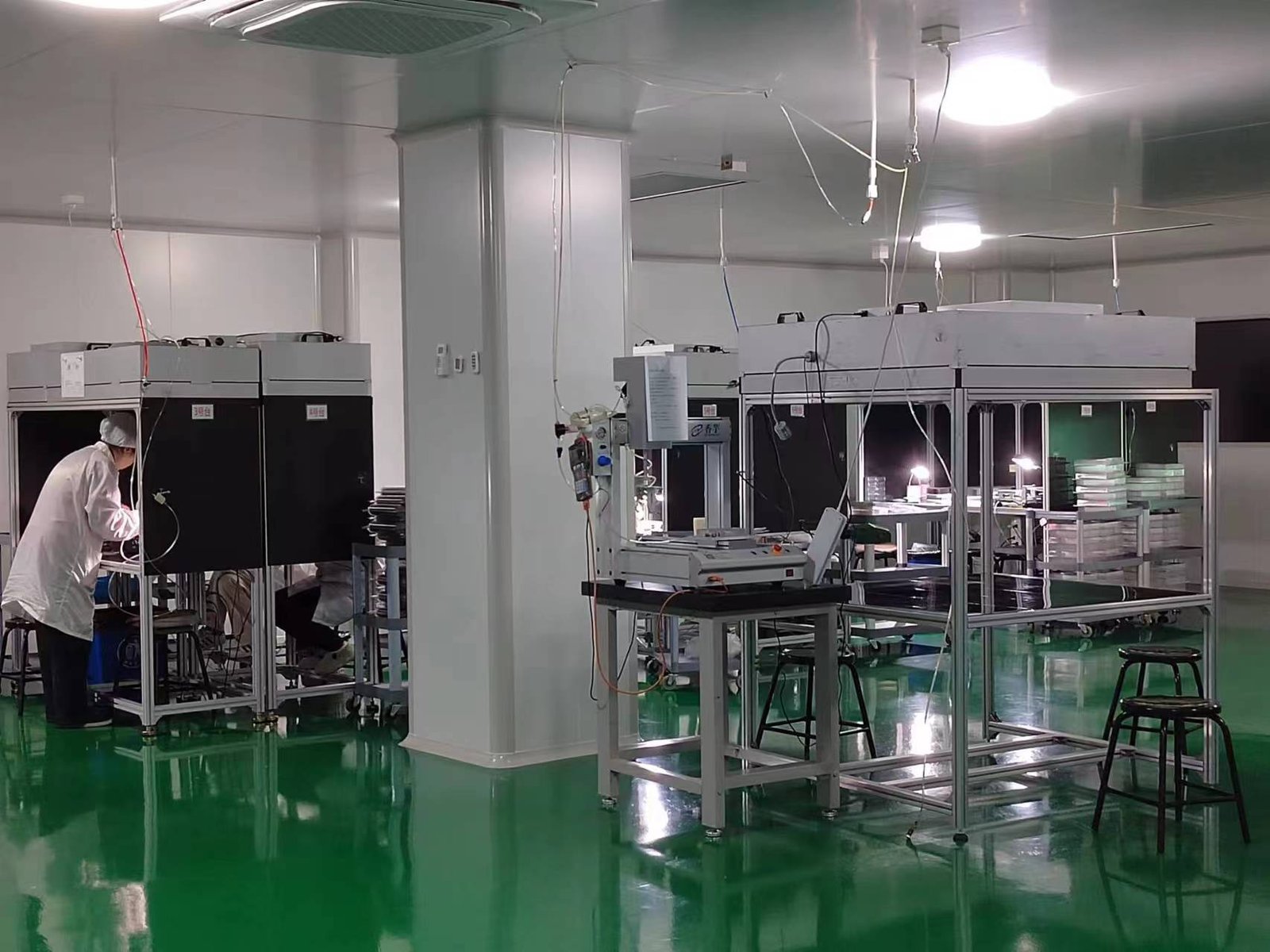

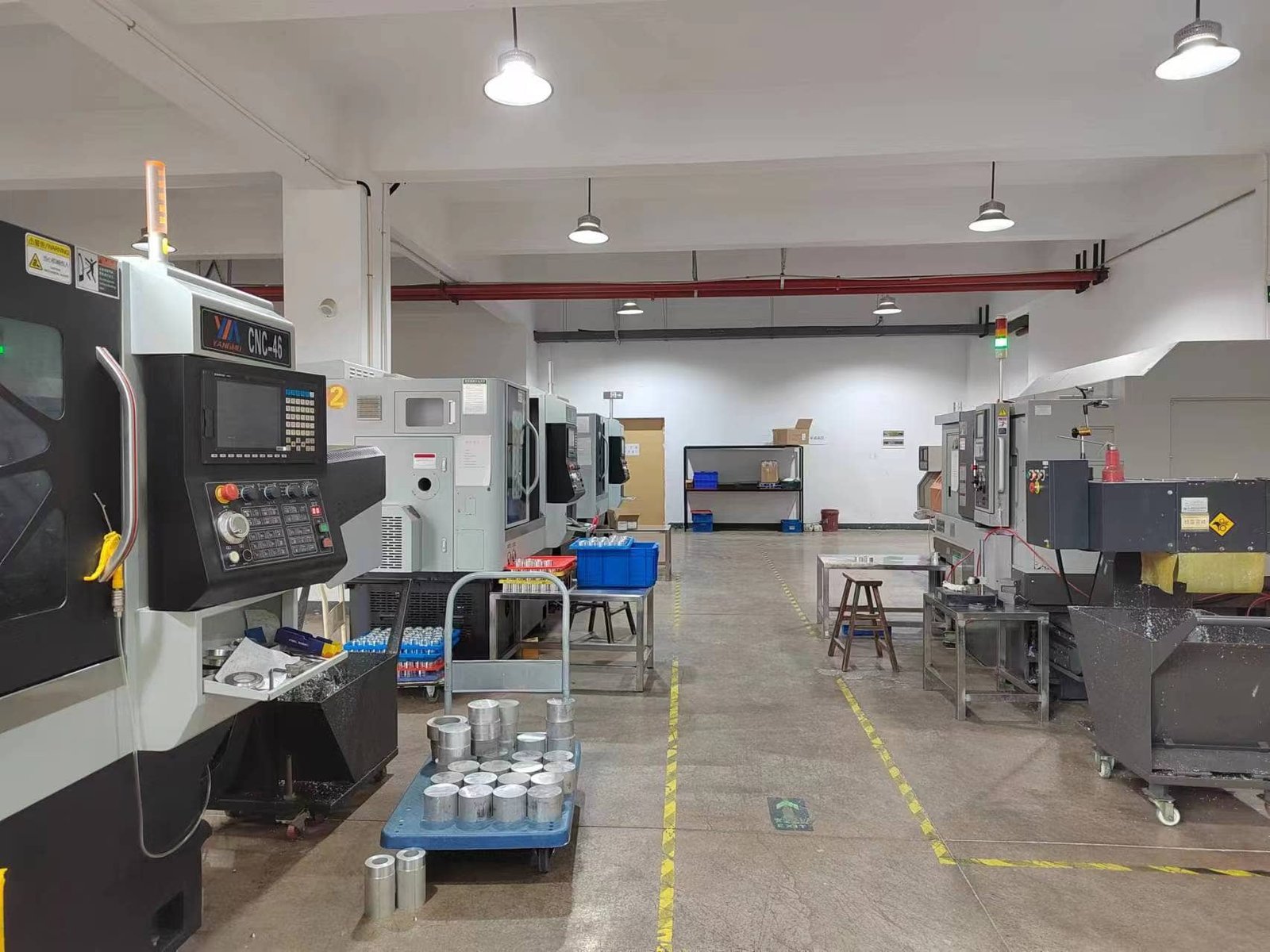

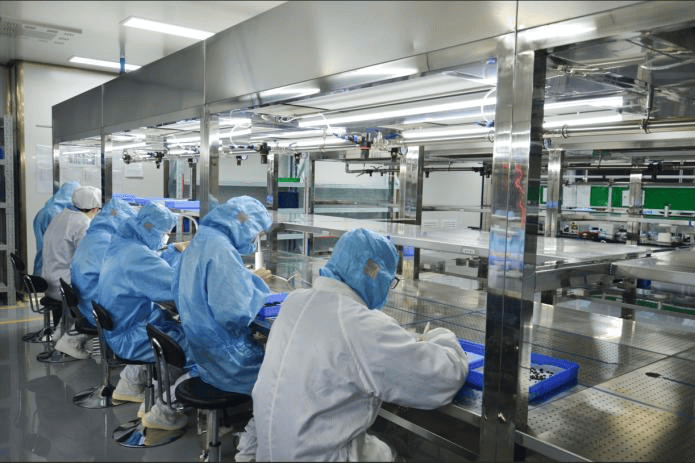

Precision Manufacturing
Controlled optical manufacturing and assembly processes.

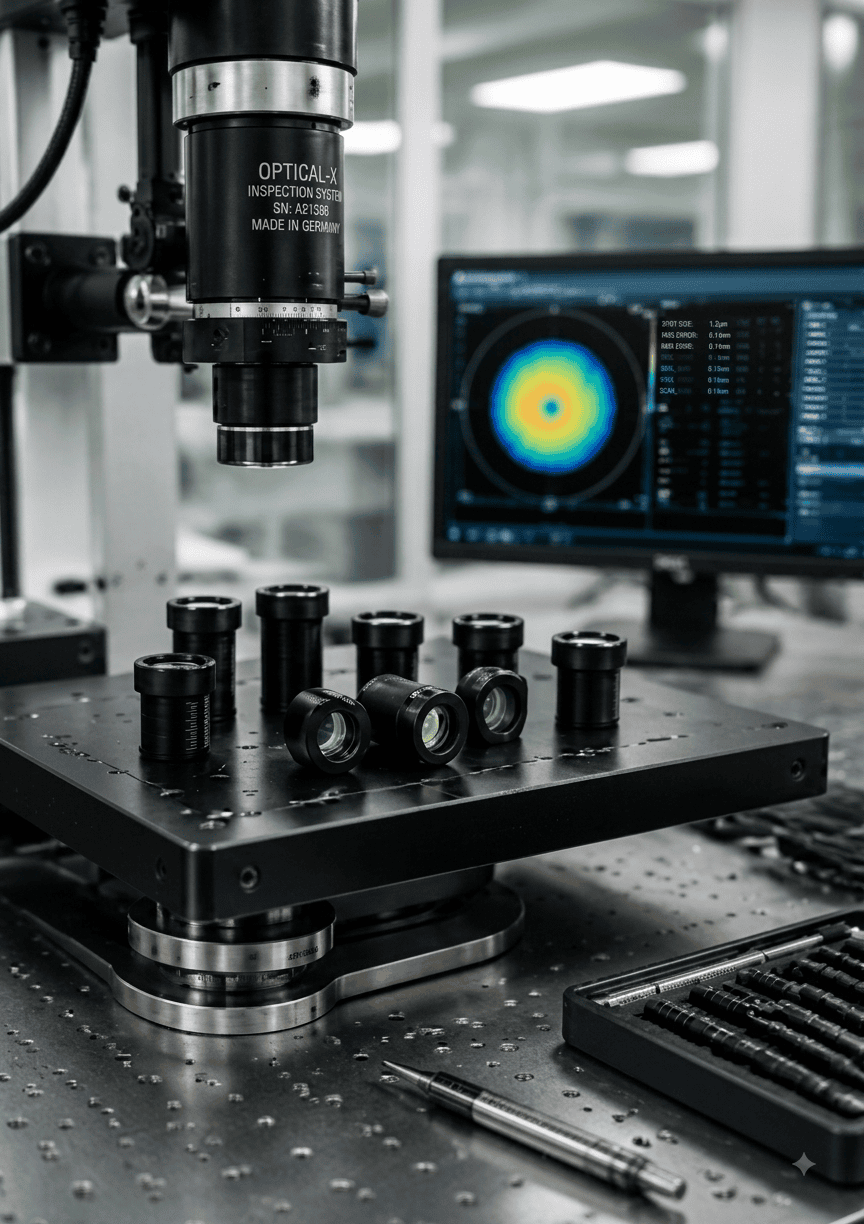

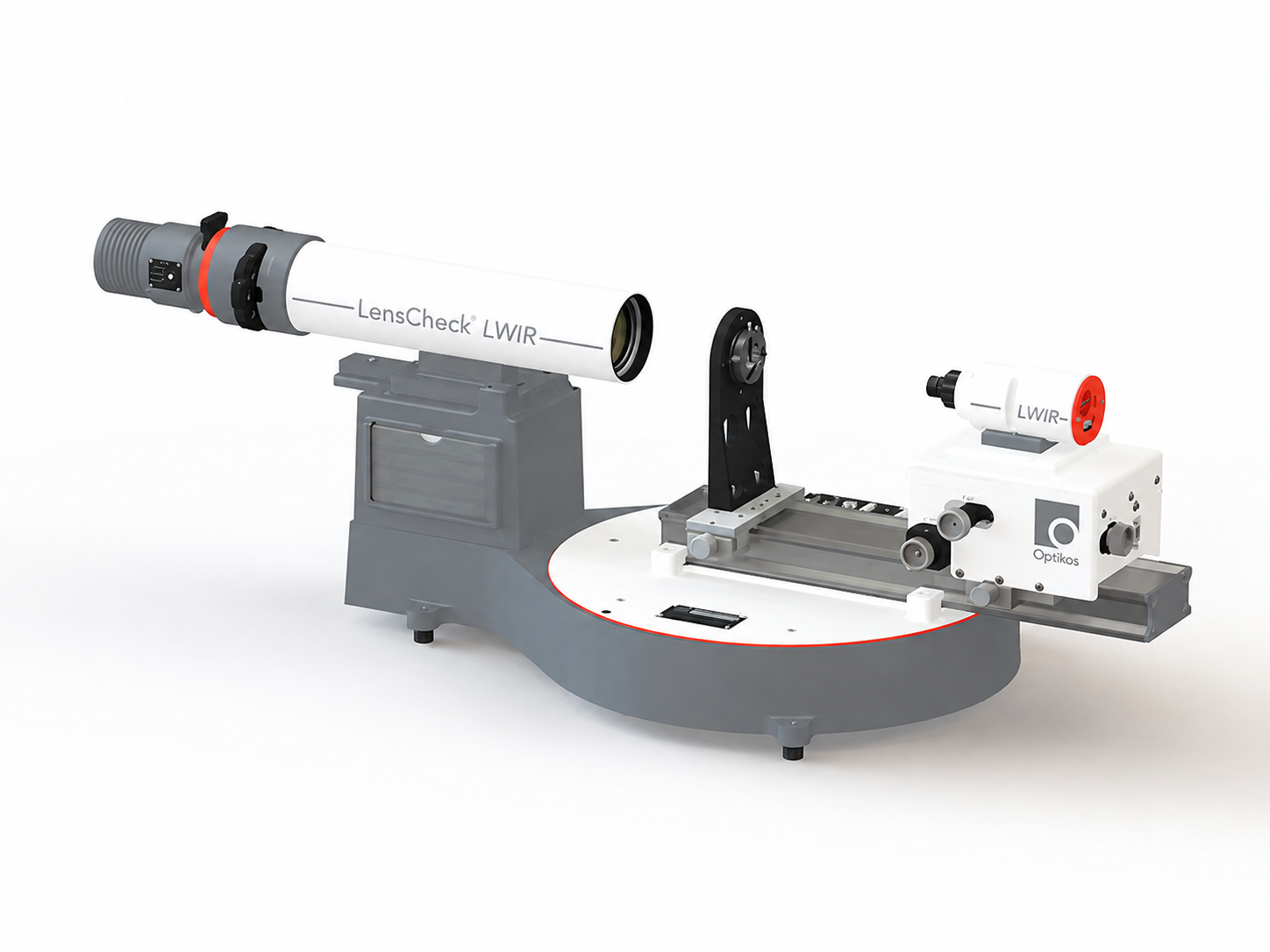

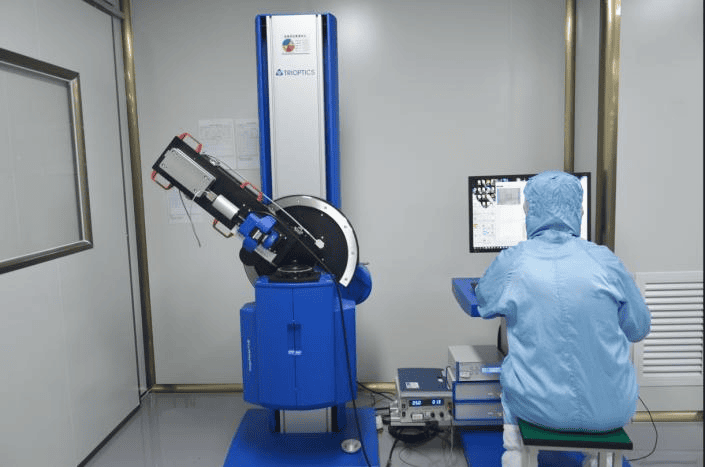

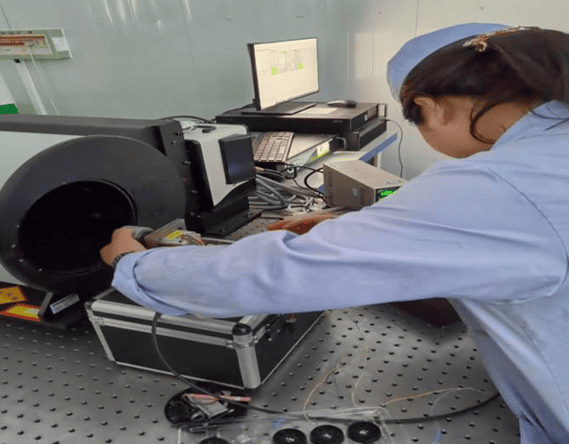

Optical Testing
Verification of imaging and optical performance.

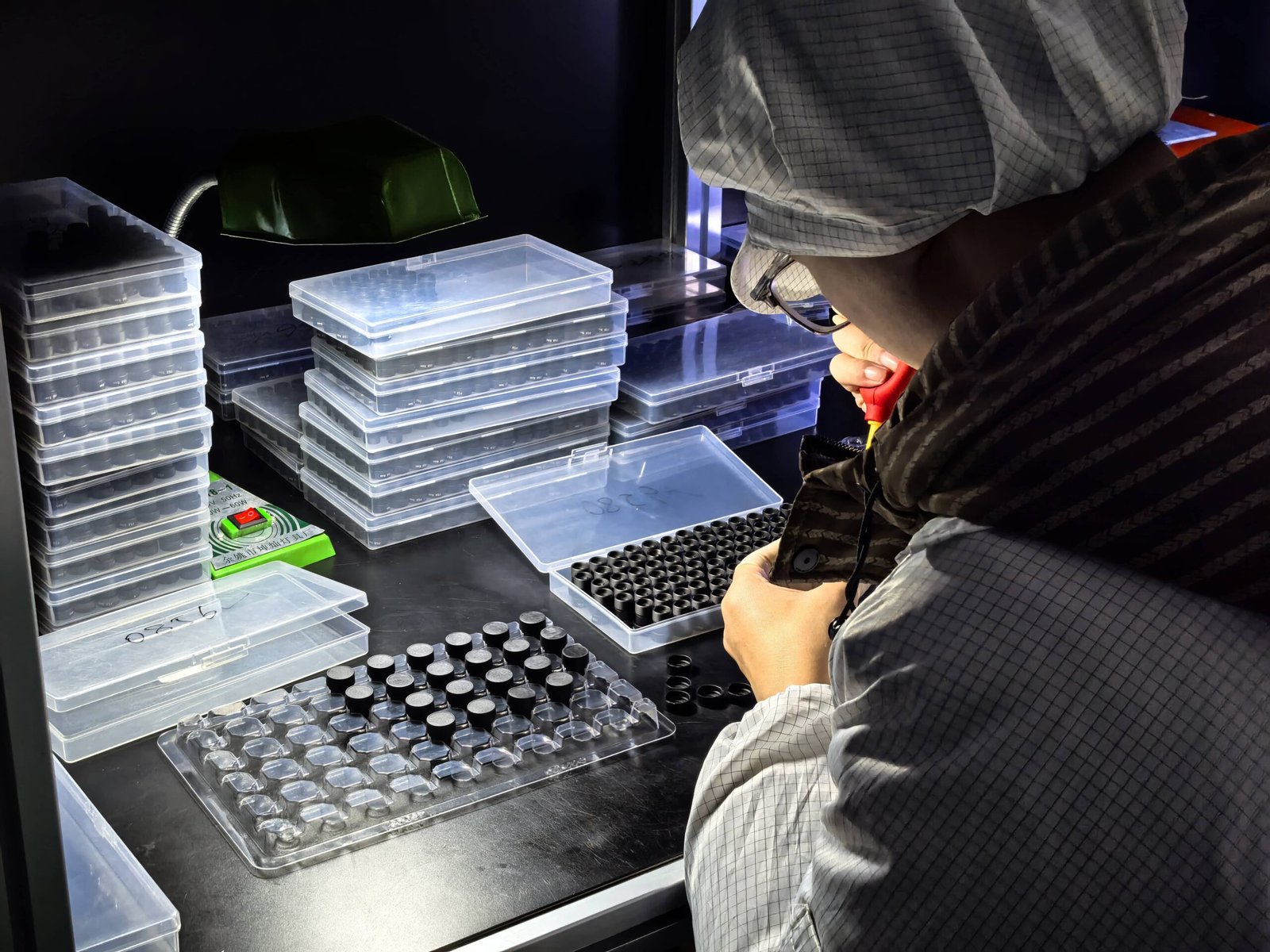

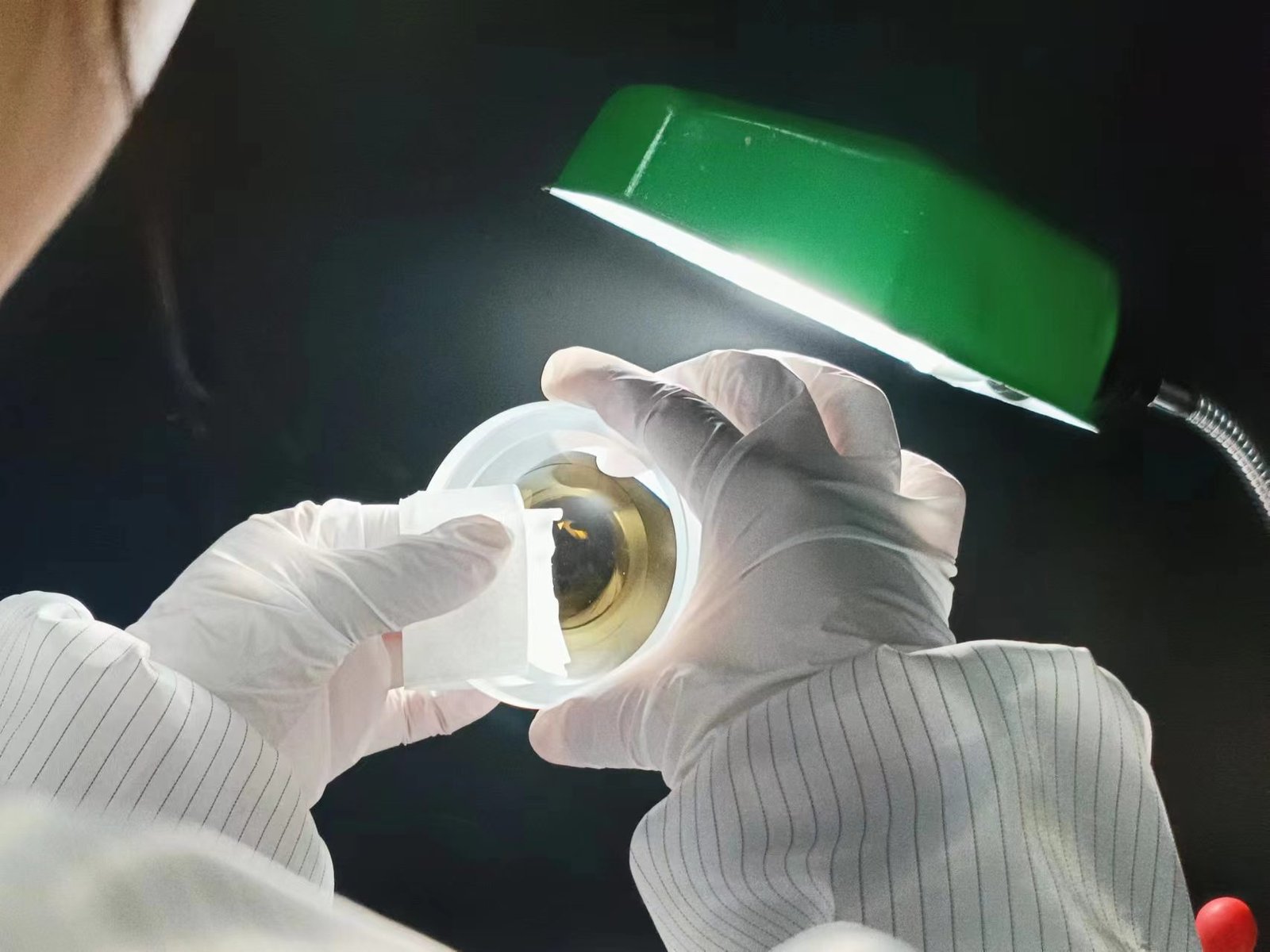

Quality Control
Consistent inspection from prototype to volume production.
Why Lensmind
Optical Depth. Production Discipline.
26 Years*
Optical Experience
ISO 9001
Quality Management
Rapid
Custom Development
OTS + ODM
Support
Prototype
to Volume Production
Stable
Optical Supply Chain
Lens selection guide
Not Sure Which LWIR Lens Fits Your Detector?
Send us your detector model or camera specifications. Our team can help evaluate a suitable standard lens configuration.
01
Detector
02
Pixel Pitch
03
FOV
04
EFL
05
F/#
06
Lens Selection
Request for quotation
Tell Us About Your Thermal Imaging Project
Contact us to have a sample test now !
With 26 years of experience in the optics industry, including roles at Sunny Optical, LG, Foxconn, and Asia Optical, brings extensive expertise in senior sales management, quality, and procurement, supported by deep industry knowledge and a strong professional network.
- Contact: Baker Zhao
- sales@lensmindpro.com
- +86 181 2524 5828
- www.lensmindpro.com
What detector pixel pitches and formats do your LWIR lenses support?
Our standard and custom infrared optics support LWIR, MWIR, and SWIR systems, with designs tailored to cooled and uncooled detectors. Chalcogenide LWIR lens options accommodate 8, 12, and 17 µm pixel pitches and detector resolutions including 384 × 288, 640 × 512, and 1280 × 1024. Multiple focal lengths and athermal design options help match detector dimensions, spectral response, and imaging requirements.
How does passive athermalization maintain image focus across extreme operating temperatures?
Passive athermalization balances the temperature-dependent optical properties of lens materials with the thermal expansion of mechanical components. By carefully selecting materials and optimizing lens geometry and spacing, the design compensates for focus shifts without motors, heaters, or active adjustment. This helps maintain image sharpness across the specified operating temperature range, with performance verified through thermal and optical testing.
What is the advantage of chalcogenide glass lenses?
Chalcogenide glass is well suited to high-volume precision molding, reducing per-lens processing time while improving production efficiency and consistency. Aspheric designs can also reduce lens element counts and assembly steps, helping lower overall manufacturing costs at scale.
What is your typical turnaround time for standard chalcogenide lens prototyping?
For custom optical designs (modified EFL, FOV, or mechanical interfaces), our typical prototyping cycle ranges from 7 to 8 weeks from optical drawing approval to prototype delivery. For standard Off-The-Shelf (OTS) lens options, we maintain buffer stock for rapid sampling within a few business days.
Are your infrared lenses compliant with international environmental standards?
What information do I need to provide to get a custom lens recommendation?
For an accurate optical assessment, please share your detector resolution and pixel pitch, operating wavelength range, required field of view (FOV) or effective focal length (EFL), and target f-number. Include any mounting requirements, size constraints, and operating conditions, such as temperature range, shock, and vibration.
FAQ
What detector pixel pitches and formats do your LWIR lenses support?
How does passive athermalization maintain image focus across extreme operating temperatures?
What is the difference between chalcogenide glass and traditional germanium (Ge) lenses?
What is your typical turnaround time for custom chalcogenide lens prototyping?
Are your infrared lenses compliant with international environmental standards?
What information do I need to provide to get a custom lens recommendation?
Let’s Discuss Your Thermal Imaging Optics
Looking for a standard LWIR lens or a custom optical solution? Send your detector specifications and application requirements.
